Total Laser Power：RGB-33,000mW
Diode-637nm：>9,000mW
Diode-520nm：>12,000mW
Diode-445nm：>12,000mw
Beam diameter：6.5mm
Beam divergence：1.0mrad(full angle)
Modulation：>100KHz Analog
Scanner：35Kpps@8°/30Kpps@60°
AC power：100-240V 50/60Hz
Protection rating：IP 52
Size： L438 * W310 * H224mm
Weight：32.45kg
Class IV laser products​
Retail Price：

Description：

• ​Laser Module：Pure diodes, longer lifetime, higher reliability.
• ​​Laser Case：New rainproof design( IP 52), high-end waterproof connectors, efficient cooling-Heatsink area covers 40% of  the laser case area. Slide cover for easy/quick beam alignment.
• ​Control：Built in Pangolin FB4 / Ethernet.
• Safety：Safety key switch, Time delay for laser shooting, Manual reset, Emergence stop box ( Time delay ), Slide cover for beam aperture, Shutter, Scan-fail protection, Auto Power-Cut etc.

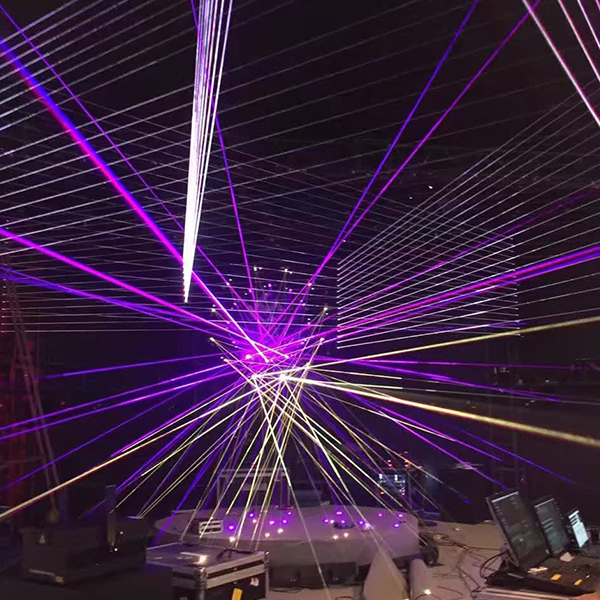

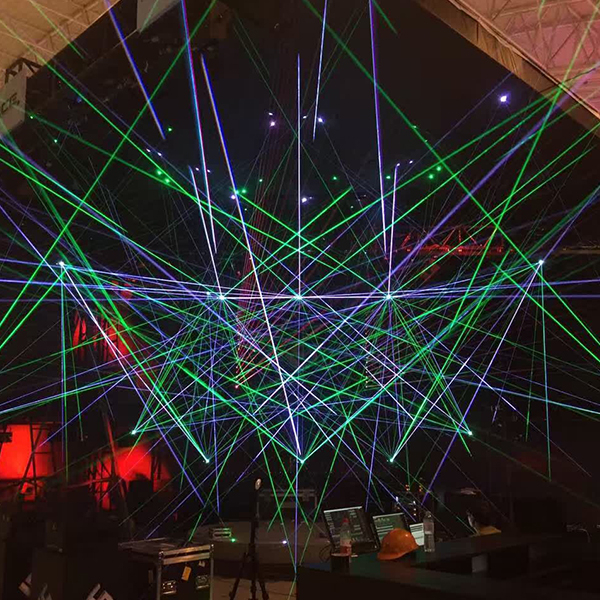

Show Results：​
