Total Laser Power：11,000mW
Diode-637nm：>3000mW
Diode-520nm：>3600mW
Diode-445nm：>4800mw
Beam diameter：5mm
Beam divergence：1.1mrad(full angle)
Modulation：>100KHz Analog
Scanner：PT-A40
AC power：100-240V 50/60Hz
Protection rating：IP 52
Size： L316 * W255 * H180mm
Weight：15.3kg
Class IV laser products
Retail Price：
Description：
- Laser Module：Pure diodes, longer lifetime, higher reliability. Low divergence < 1.1 mrad (full angle).
- Scanner：PT-A40HP wide angle, New detecting technique, Large scan angle, Excellent overload capacity and linearity.

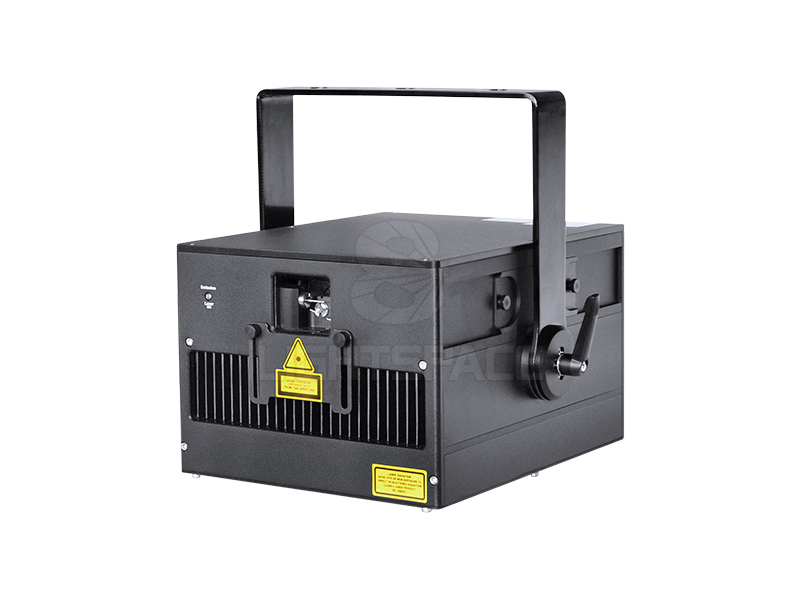

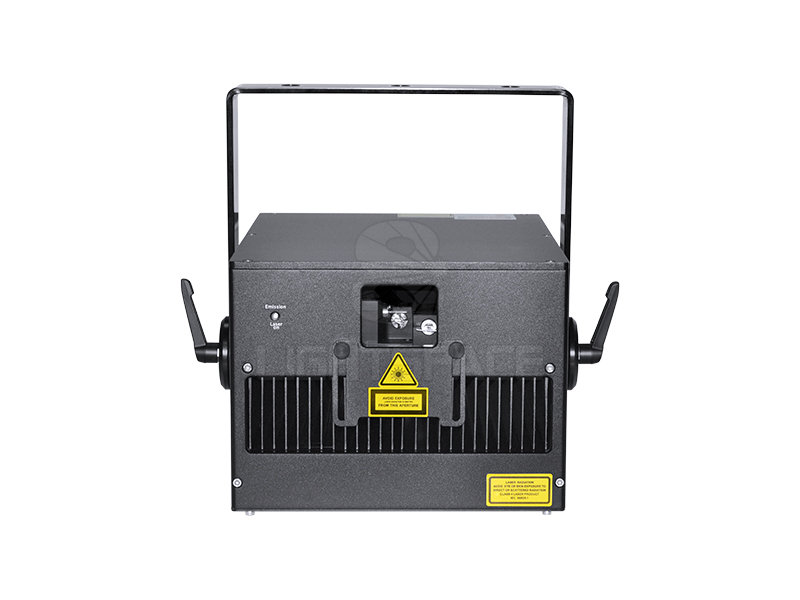

- Laser Case：New dust free design, efficient cooling-Heatsink area covers 40% of the laser case area. Slide cover for easy/quick beam alignment.
- Safety：Pure ILDA control board, Safety key switch, Time delay for laser shooting, Emergence stop box ( Time delay ), Slide cover for beam aperture, Shutter, Scan-fail protection, Auto Power-Cut etc.

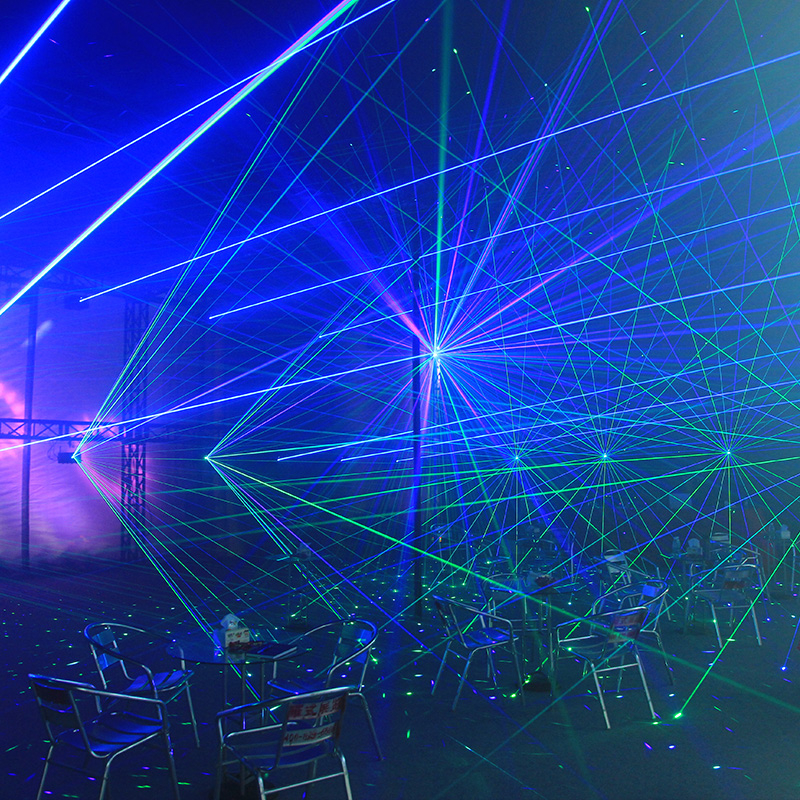

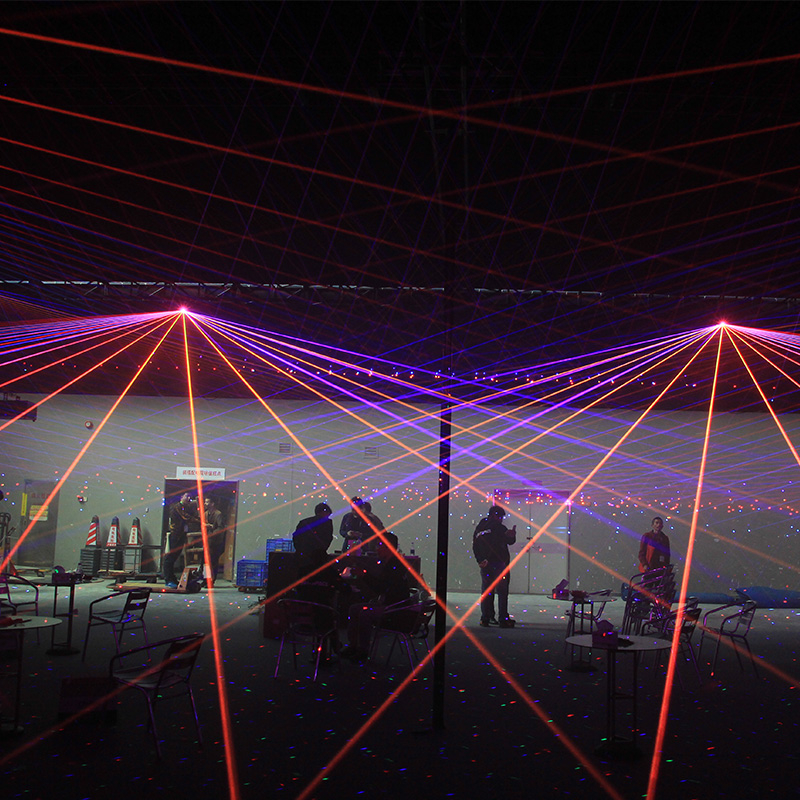

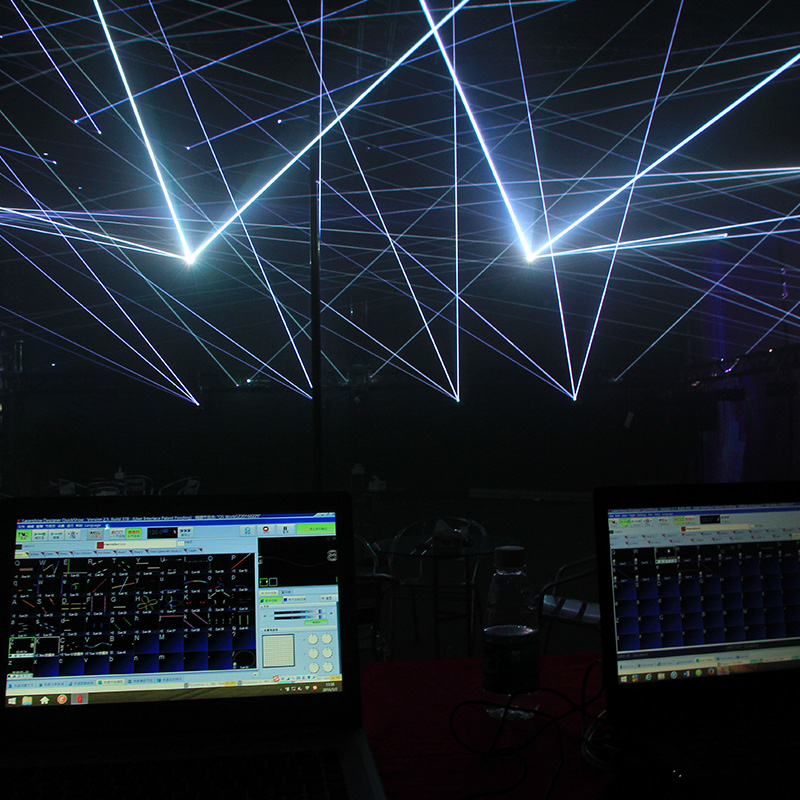

Show Results：
